[C#] C# dll COM, CommonUI





Visual Studio 2022

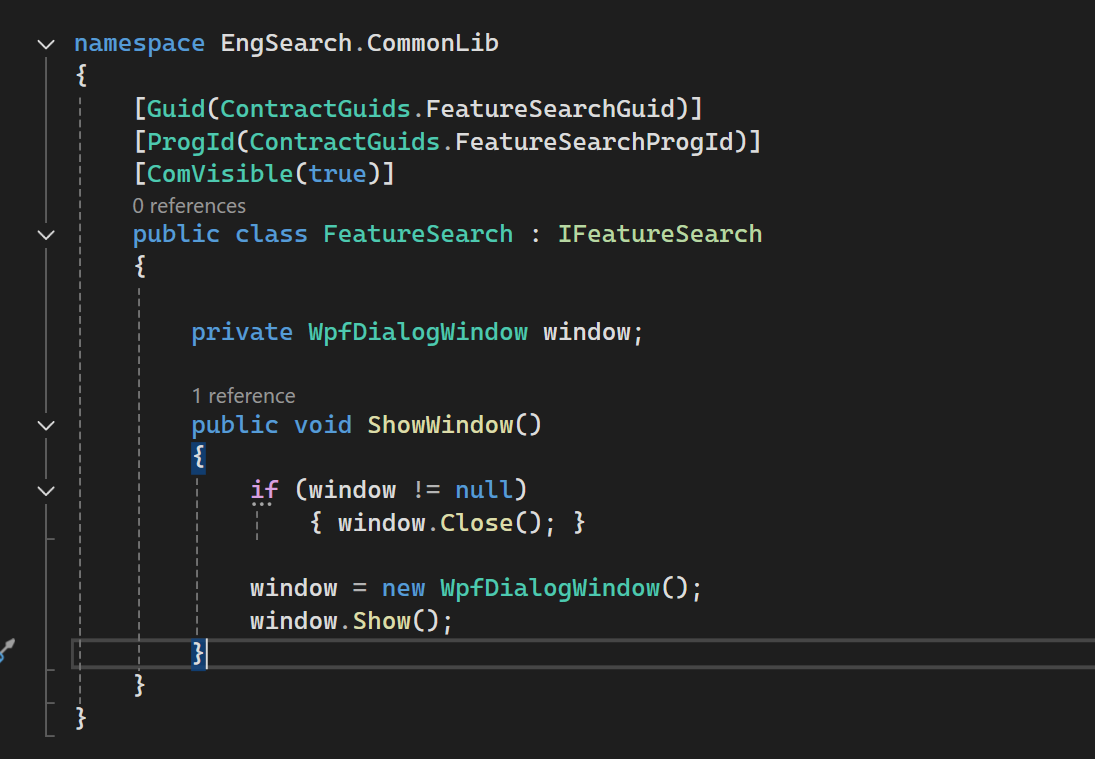

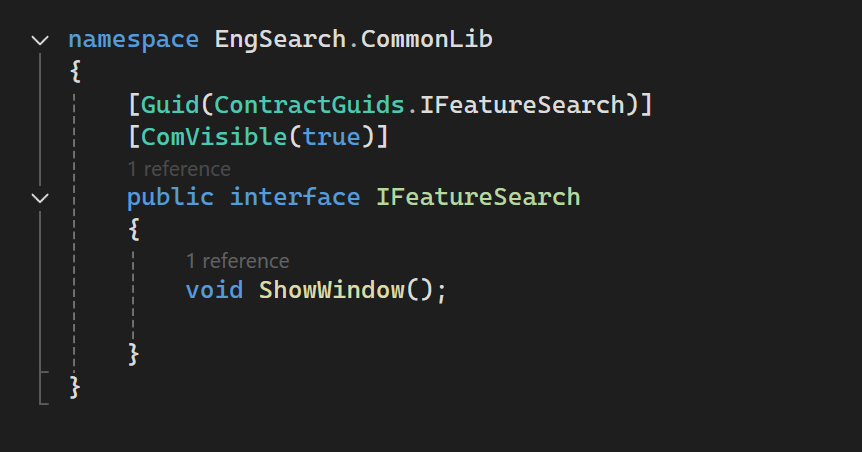

COM 생성 (ex. C# WPF CommonUI)

프로젝트 생성

.Net Framework

C#

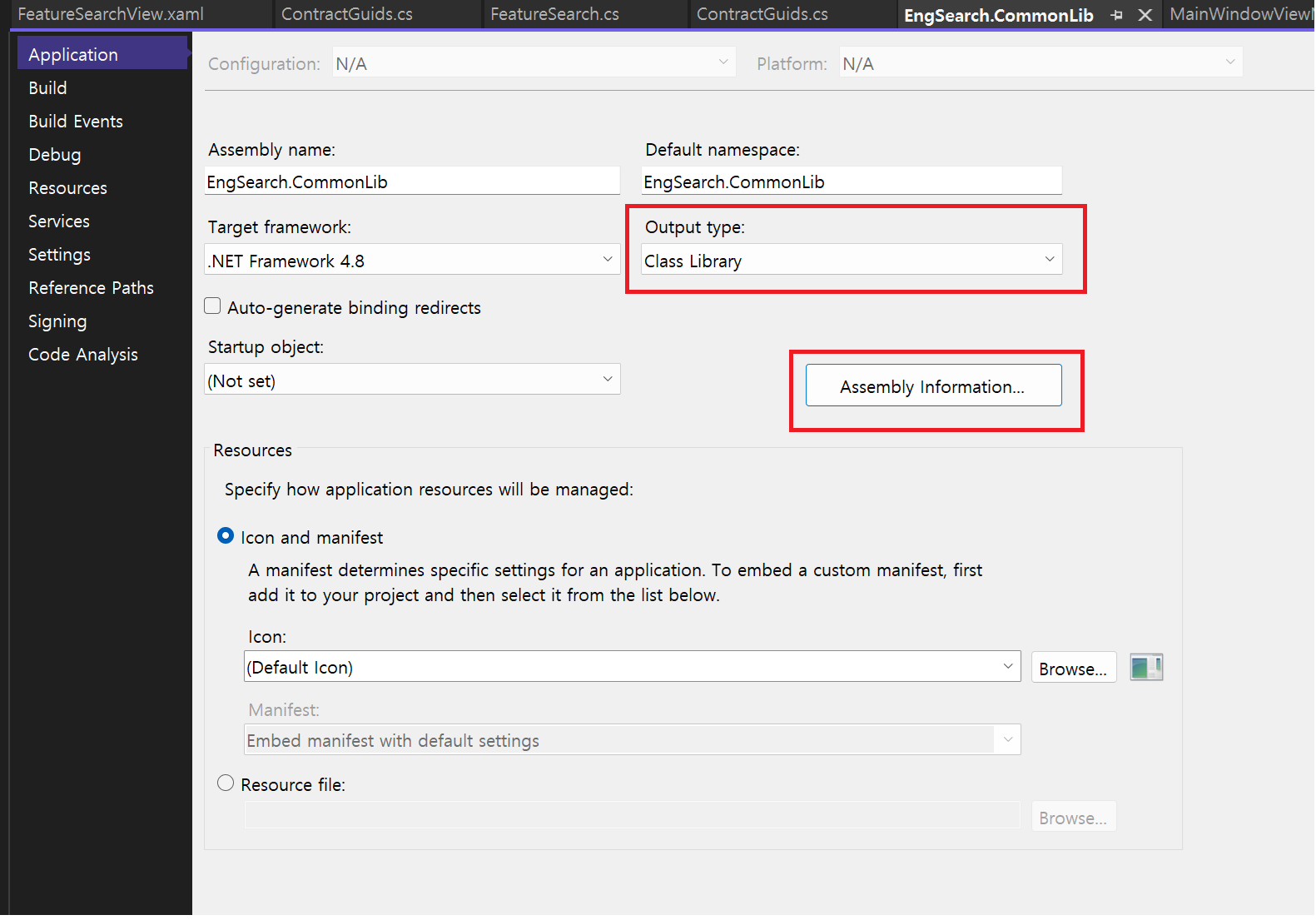

Properties

Output type: Class Library

Assembly Information..















---

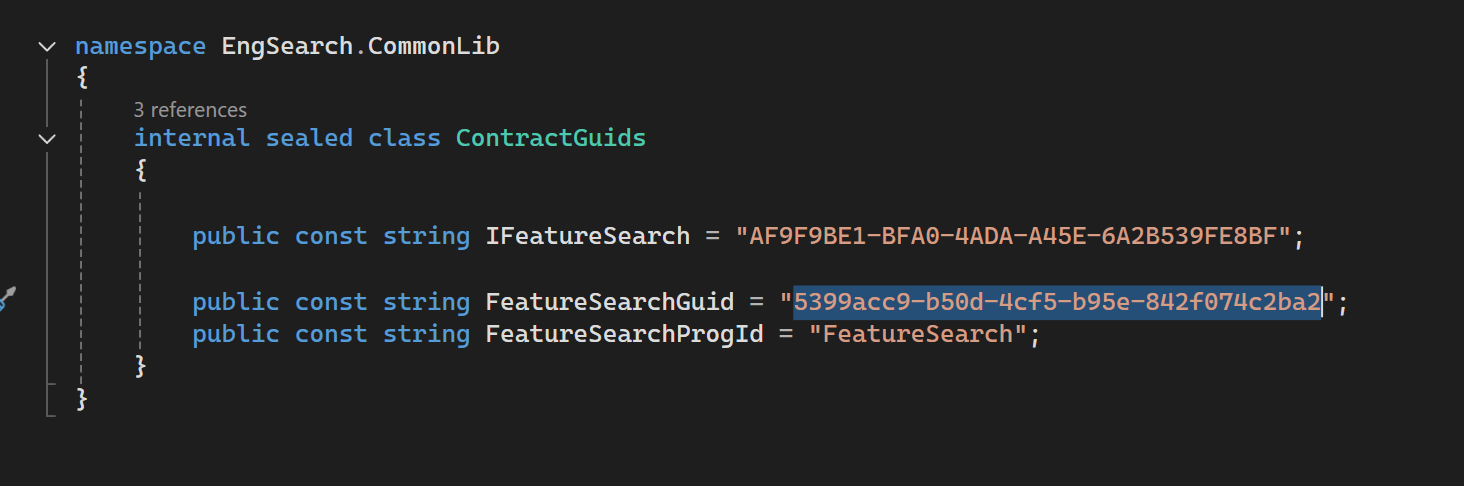

COM등록



Register.bat

0.00MB

UnRegister.bat

0.00MB

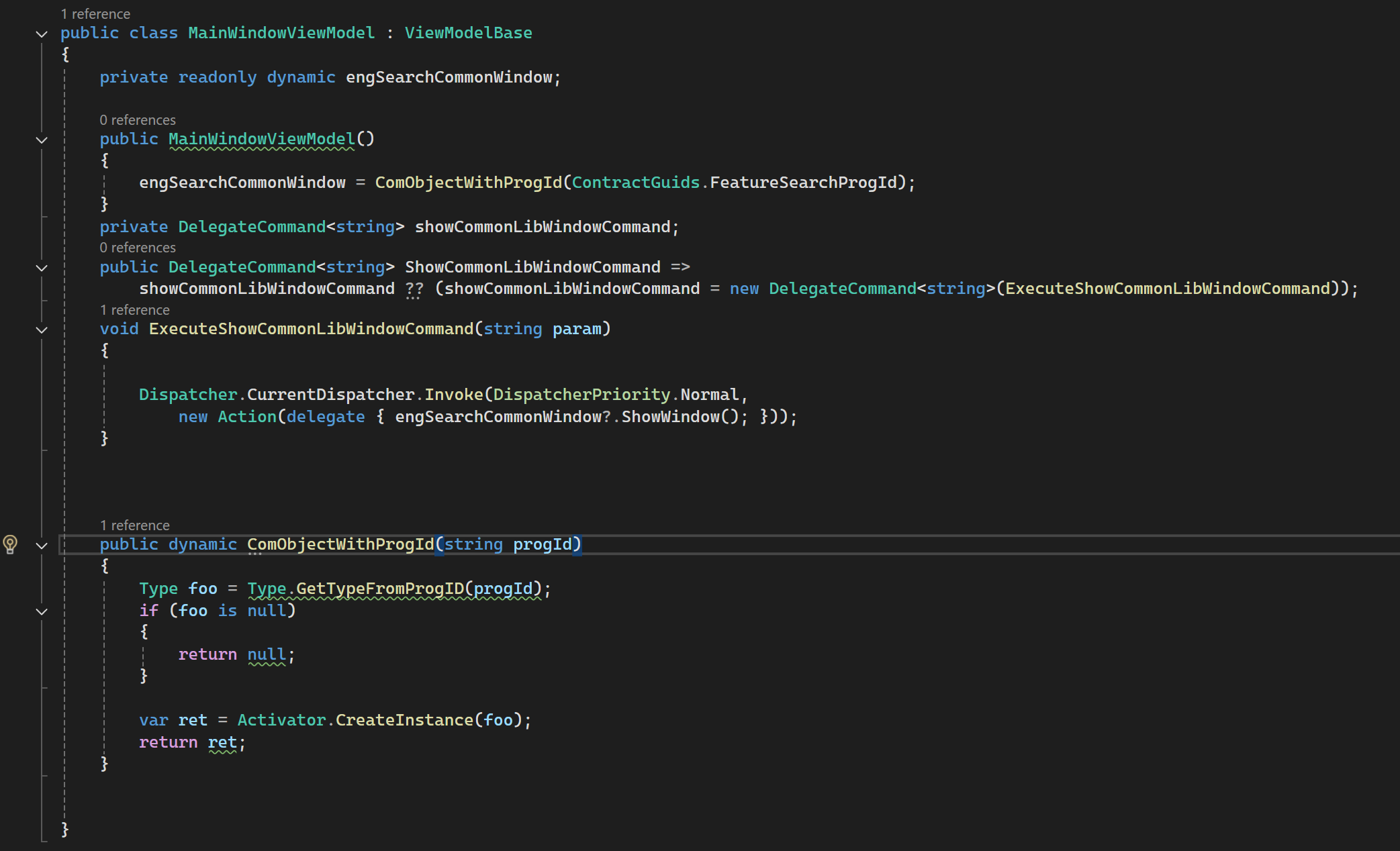

COM호출

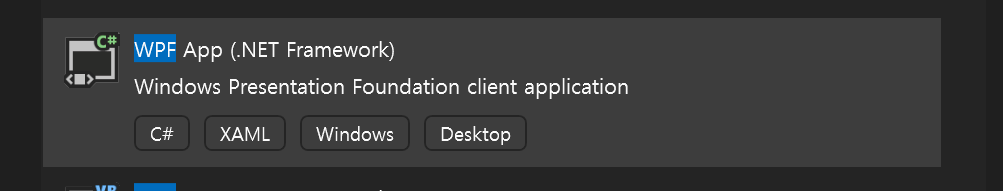

WPF App (.Net 6 )







---

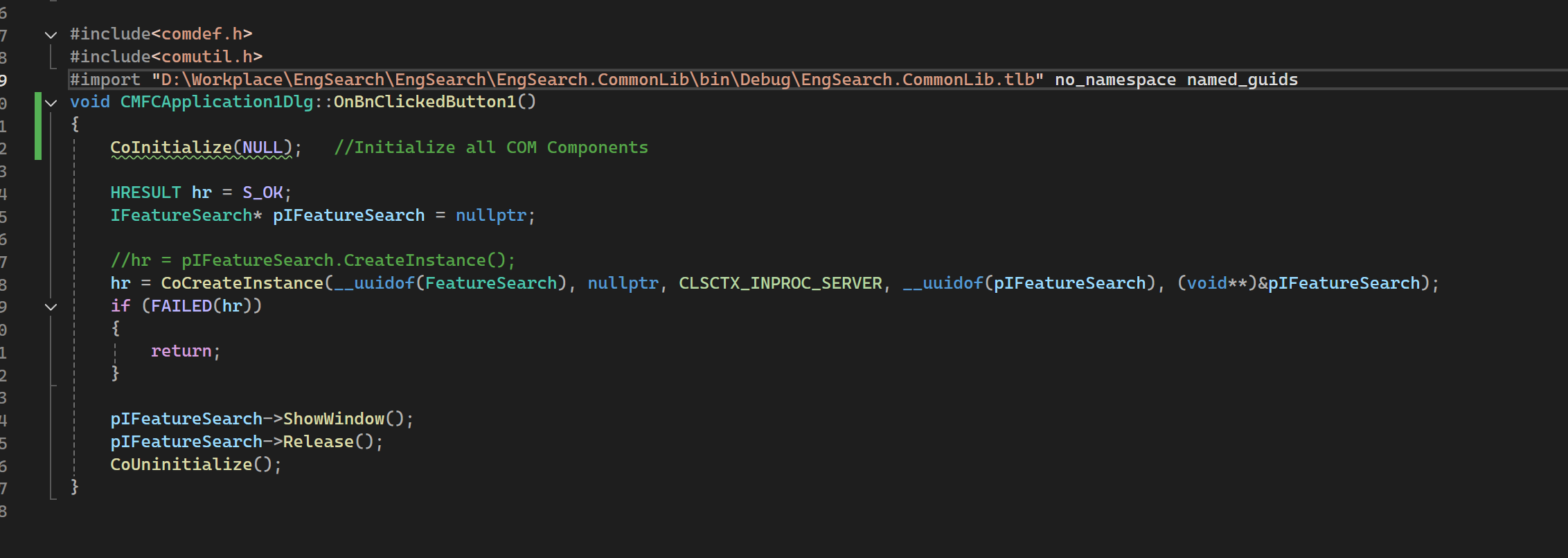

MFC







https://blog.naver.com/dks444/220427871338







---





dll load



3rd Party Component  ex) DevExpress

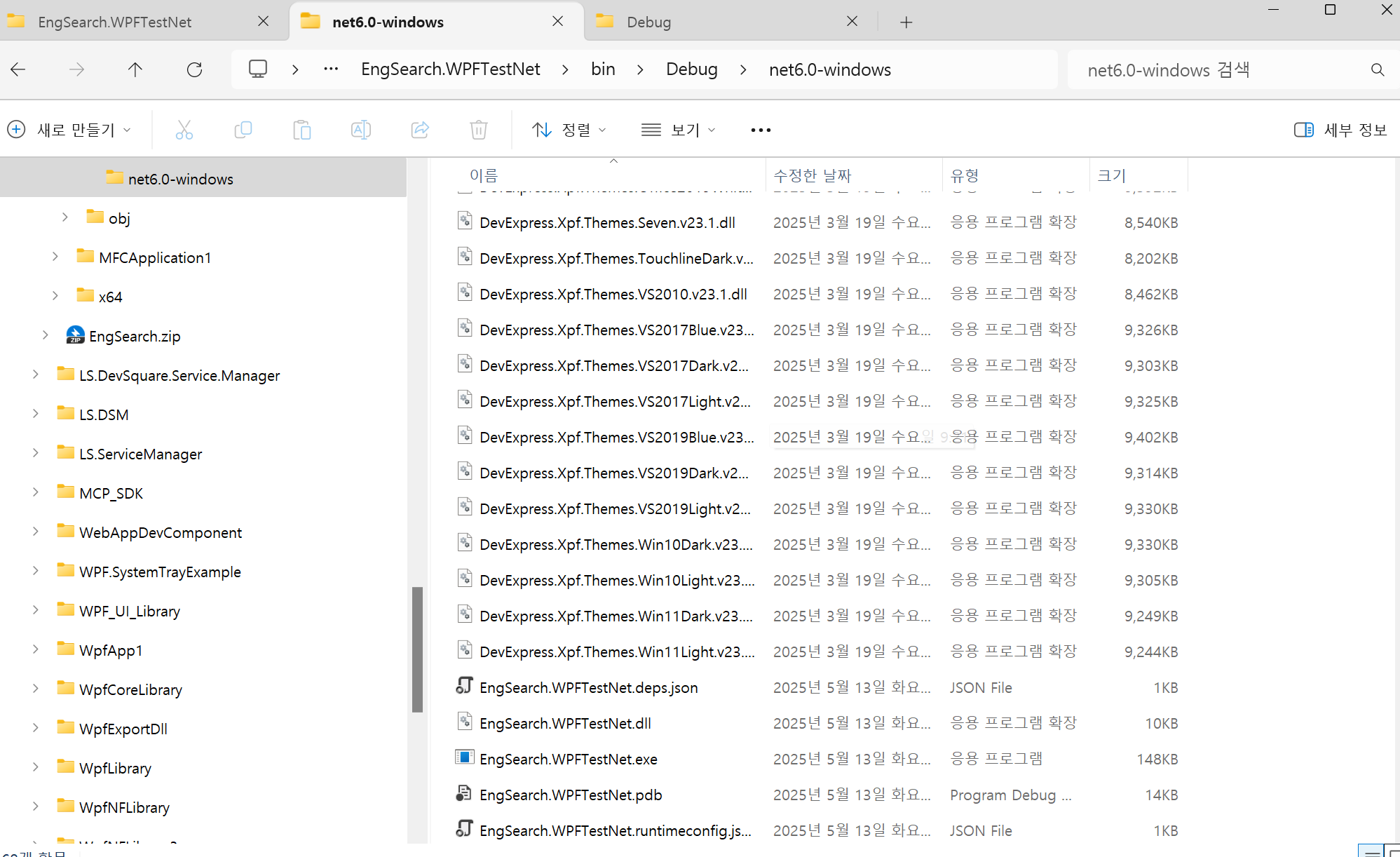

.exe 실행파일 경로에 COM 이 필요로하는 dll 넣어줘야 로드 함. (WPF, MFC 동일)



ex)

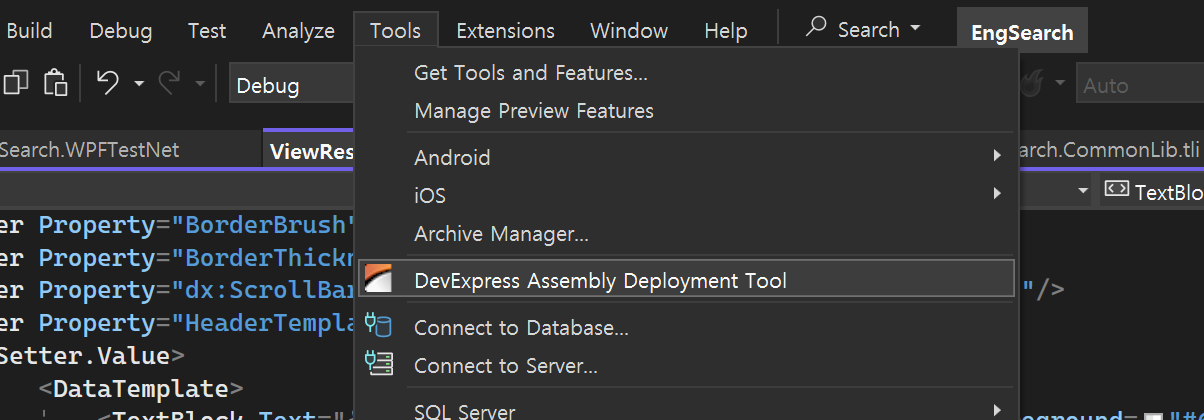

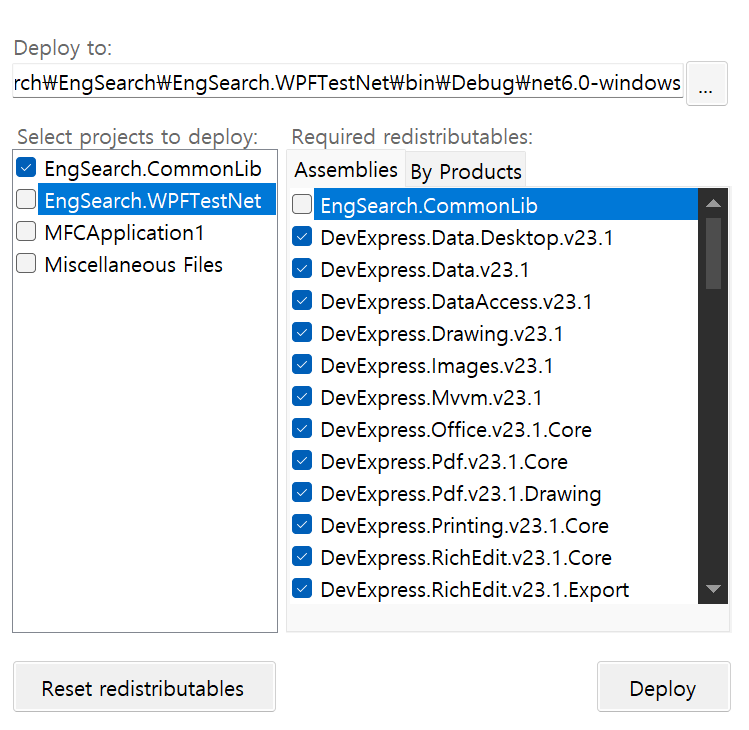

DevExpress 는 관련 dll 들 Deployment Tool이용. (Ctrl + C ,V 로 dll 복사시 구동에 빠져있는 dll들이 있음. ex) Themes.~.dll )





COM.dll 은 빼고 COM.dll이 호출하는 나머지(DevExpress.dll)들만 복사

# COM.dll (EngSearch.CommonLib.dll) 복사 시 등록된 COM을 제대로 호출 못하는 상황 있음.





---

# Com.dll 위치에서 assemblyload

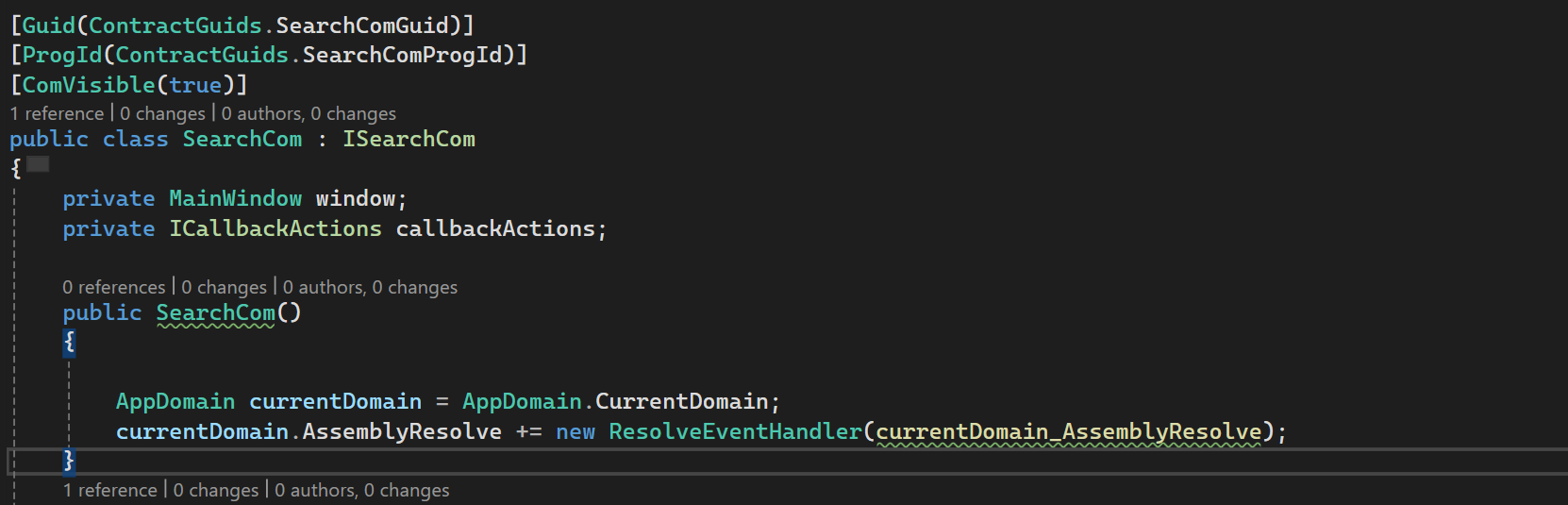

 public SearchCom()
 {

     AppDomain currentDomain = AppDomain.CurrentDomain;
     currentDomain.AssemblyResolve += new ResolveEventHandler(currentDomain_AssemblyResolve);
 }

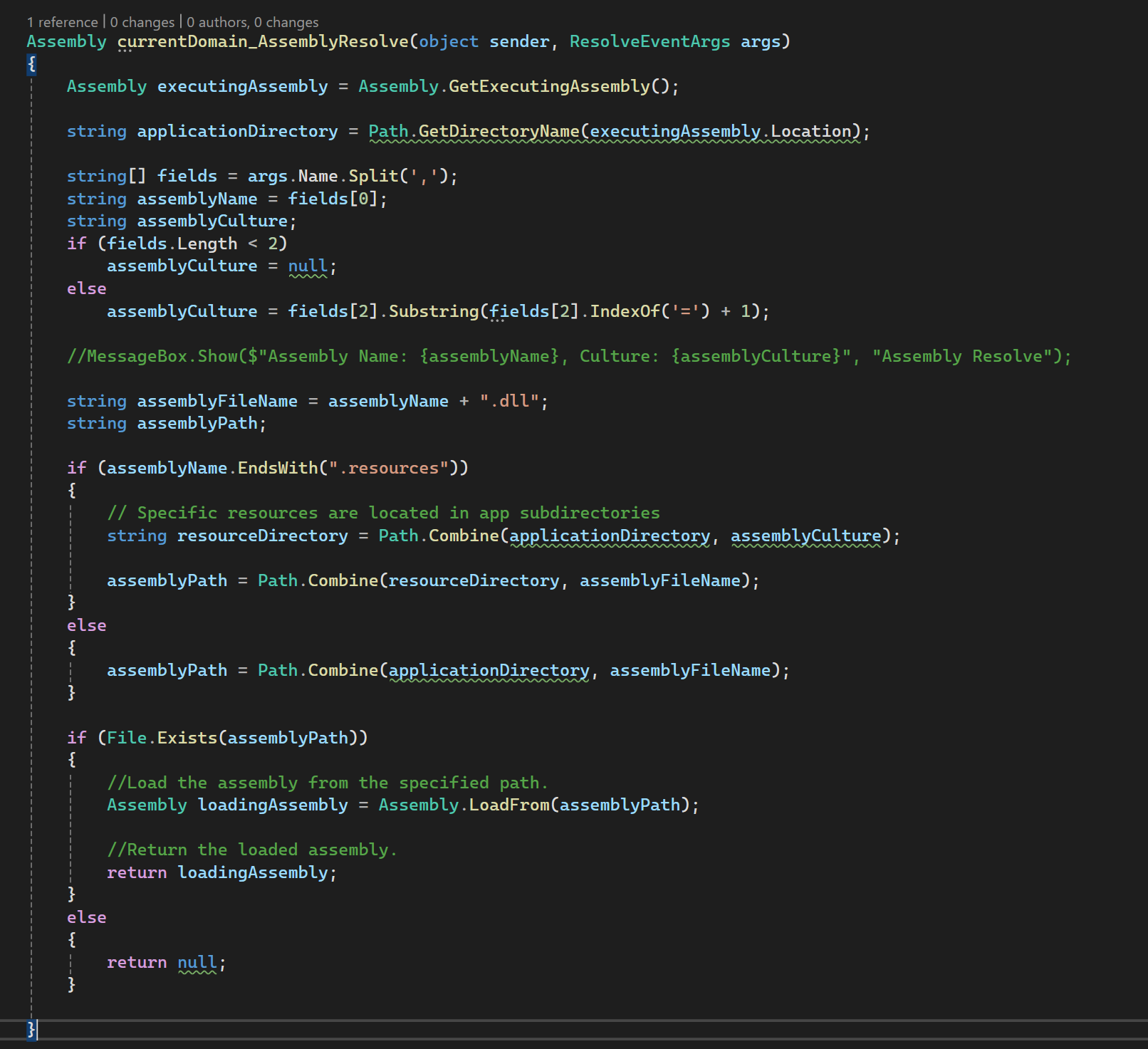

    Assembly currentDomain_AssemblyResolve(object sender, ResolveEventArgs args)
    {
        Assembly executingAssembly = Assembly.GetExecutingAssembly();

        string applicationDirectory = Path.GetDirectoryName(executingAssembly.Location);

        string[] fields = args.Name.Split(',');
        string assemblyName = fields[0];
        string assemblyCulture;
        if (fields.Length < 2)
            assemblyCulture = null;
        else
            assemblyCulture = fields[2].Substring(fields[2].IndexOf('=') + 1);

        //MessageBox.Show($"Assembly Name: {assemblyName}, Culture: {assemblyCulture}", "Assembly Resolve");

        string assemblyFileName = assemblyName + ".dll";
        string assemblyPath;

        if (assemblyName.EndsWith(".resources"))
        {
            // Specific resources are located in app subdirectories
            string resourceDirectory = Path.Combine(applicationDirectory, assemblyCulture);

            assemblyPath = Path.Combine(resourceDirectory, assemblyFileName);
        }
        else
        {
            assemblyPath = Path.Combine(applicationDirectory, assemblyFileName);
        }

        if (File.Exists(assemblyPath))
        {
            //Load the assembly from the specified path.
            Assembly loadingAssembly = Assembly.LoadFrom(assemblyPath);

            //Return the loaded assembly.
            return loadingAssembly;
        }
        else
        {
            return null;
        }

    }





---





CommonUI

Icon, Theme





#Com interop에서 Callback



Callback 인터페이스



callback 객체를 담을 그릇



담을 객체 틀

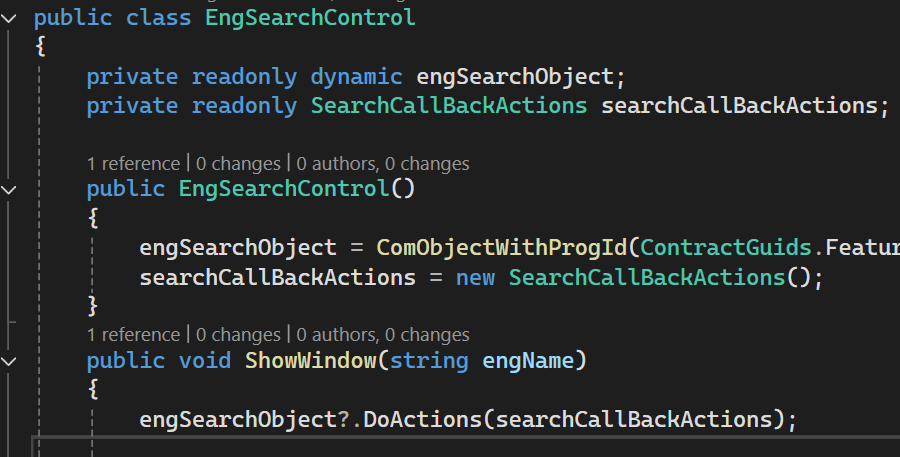

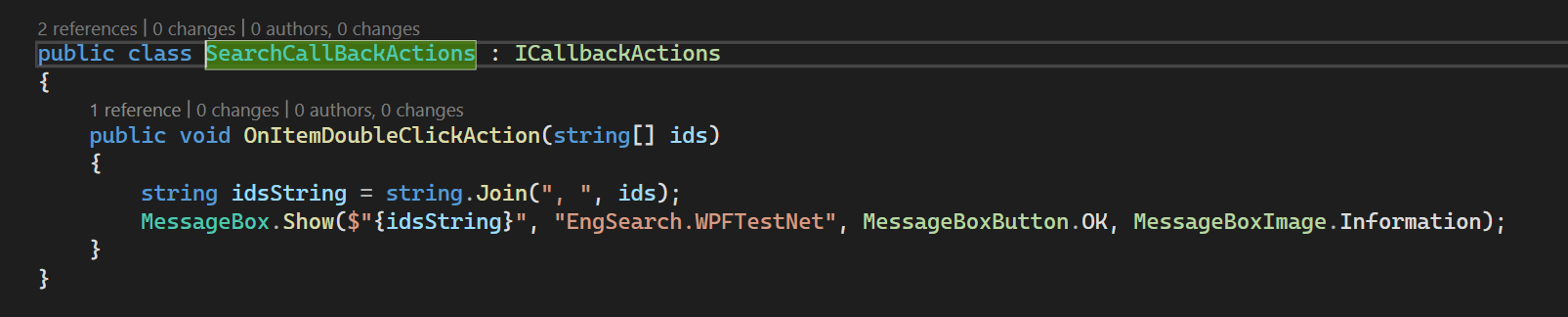

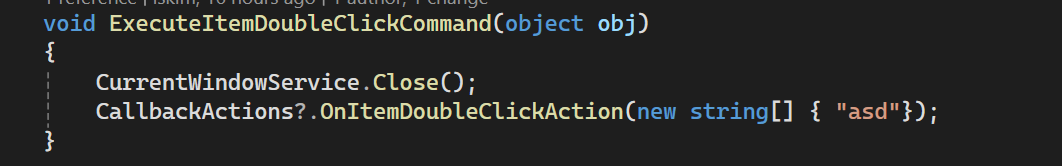

Callback객체를 만들어서  전달





전달 받은  callback 객체 사용.





---





https://petra.tistory.com/1130

C# COM 만들기





https://blog.naver.com/techshare/220976095805

C# 개발자를 위한 C++ COM 객체의 기본 구현 방식 설명
